होम /उत्पाद/PTFE अछूता तार/High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors

High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors

100
MOQ
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
कंडक्टर सामग्री: छठे वेतन आयोग
इन्सुलेशन सामग्री: पीटीएफई
रेटेड वोल्टेज: एसी 220V
कंडक्टर प्रकार: फंसे
वायर गेज: 28AWG
कार्य -तापमान: -60 ℃ से +250 ℃
कोर संख्या: सिंगल कोर
पैकिंग की लंबाई: 305एम/रोल
परिरक्षण सामग्री: टिन्ड कॉपर वायर
व्यास: 0.08 मिमी
रंग विकल्प: 11 रंग
कंडक्टर प्रतिरोध: कम प्रतिरोध
इन्सुलेशन मोटाई: पीटीएफई फिल्म
FLEXIBILITY: अच्छा
वज़न: रोशनी
प्रमुखता देना:

0.08mm PTFE SPC Wire

,

250 Degree Resistance PTFE Insulated Wire

,

11 Colors High Temperature Wire
मूलभूत जानकारी
उत्पत्ति के प्लेस: हुनान, चीन
ब्रांड नाम: Sanco cable
मॉडल संख्या: एएफआर-250
भुगतान & नौवहन नियमों
उत्पाद विवरण
High Temperature 0.08mm 28AWG PTFE SPC Wire
Product Description
High Temperature PTFE SPC Wire is an electrical wire insulated with PTFE film, offering exceptional resistance to high temperatures, chemicals, and excellent electrical insulation properties. Designed for demanding environments, this wire maintains performance in aerospace, automotive, and industrial applications where reliability is critical.

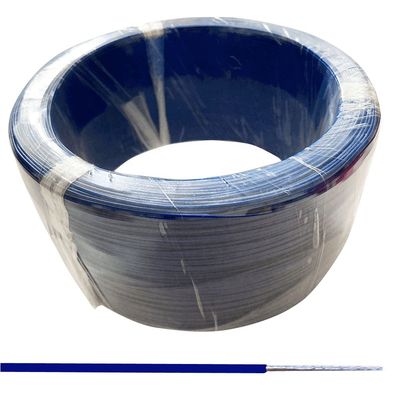

High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 0
Specifications
Application Internal wiring for electronic equipment, electrical appliances, and instruments
Advantages
  • Small outer diameter and lightweight
  • Excellent flexibility and easy to weld
  • High temperature resistant and anti-aging
  • Anti-interference properties
Available Colors Black, brown, red, orange, yellow, green, blue, purple, gray, white, and transparent

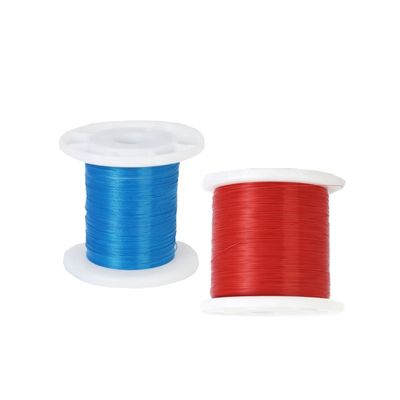

High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 1
Conductor Silver plated copper wire
Insulation PTFE
Conductor Type Stranded
Working Temperature -60℃ to +250℃
Rated Voltage AC 220V
Wire Gauge 36awg~3/0awg
Core Number Single Core
Packing Length 305m/roll
Free Sample Yes

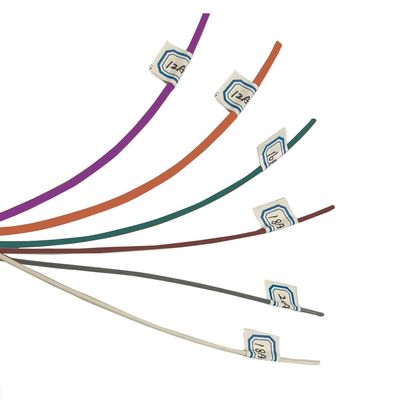

High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 2
Company Profile
Shenzhou Special Cable is a leading manufacturer of custom wires and cables, specializing in high temperature wires (PTFE, PFA, FEP, ETFE), robot cables, crane cables, and drag chain cables. Our products serve aerospace, robotics, oil fields, wind power, rail locomotives, and electronics industries.
With over 20 years of experience, we've supplied products for China's National Rocket and Manned Space Engineering Programs. Our certifications include weapons equipment quality management system, ISO9001, and CCC.

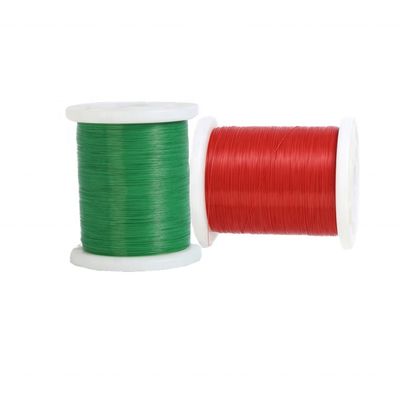

High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 3
Our Manufacturing Capabilities
  • 7,000+ sqm standard factory with 14 production lines
  • High quality imported raw materials for better chemical and heat resistance
  • Annealed pure copper conductors with low resistance

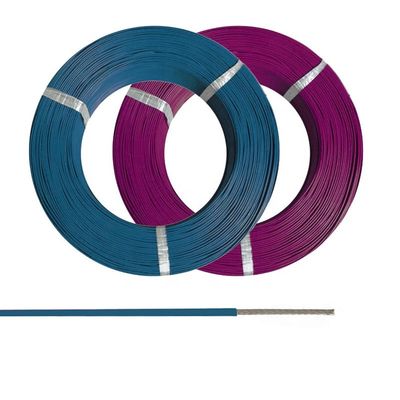

High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 4
Quality Control
  • 1,500+ sqm professional testing laboratory
  • Advanced cable testing equipment
  • Professional QC team
  • Comprehensive pre-shipment testing including annealing, tensile, conductor resistance, and insulation thickness tests

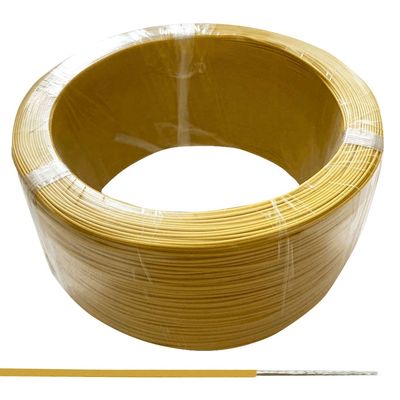

High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 5
Why Choose Us
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 6
20+ years of special cable R&D and manufacturing experience
Certified by CCC, Weapons and Equipment, and ISO9001
Trusted supplier for China's aerospace and military
Advanced cable testing equipment
Low MOQ for custom cables
Free samples and design services available
1-3 year warranty period
Packing & Delivery
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 7
  • Packing in roll with carton boxes
  • Packing in spool with carton boxes
  • Packing with barrel or pallet
  • Packing in wooden tray
Contact Us
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 8
